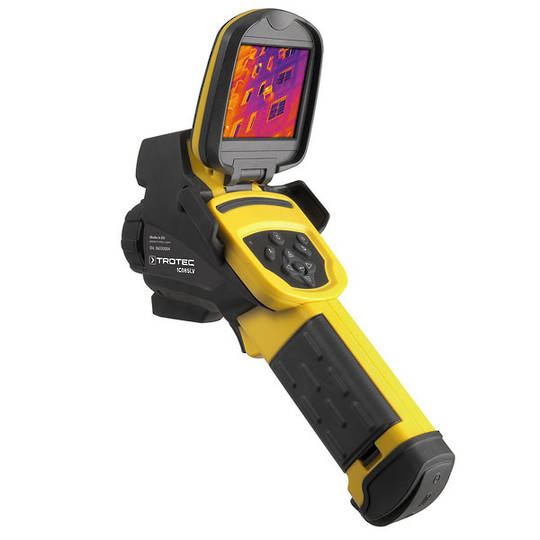

Trotec IC085LV Infrared Camera

The next generation Trotec IC085LV IR camera features state-of-the-art microbolometer technology which ensures more precise 50-Hz real-time thermal images comprising a 384x288 pixel detector (110,592 individual temperature measuring spots) with maximum interference and noise reduction.
Providing clear, crisp and well-defined images, the sophisticated sensors of the IC085LV can constantly detect even the smallest of temperature changes providing excellent thermal imaging results in most fields of applications, even in the hardest of conditions, such as summer building inspection.

The low 1.3mRad geometric resolution of the IC085LV allows for very small spot measurement imaging, a critical component for electrical P&P surveys.

The camera enables sector analyses and differential measurements at up to 8 movable temperature measuring spots, all of which can be configured individually. Additionally, via an isotherm and alarm function, it is possible to indicate temperature limits set by individual colours or alarm signal – ideally suited for determining dew point detection on surfaces.

The integrated targeting laser pointer simplifies the quick location of problematic areas and thanks to the integrated hot/cold spot recognition, the IC085LV will automatically find the hottest or coldest spot in the thermogram.

The new DuoVision Plus fusion imaging on the IC085LV enables razor-sharp digital images, which can be superimposed on the infrared images in real time as picture-in-picture display.

DuoVision Plus combines the infrared image information with high-contrast details of the visible light spectrum from the digital image camera so as to create an extremely detailed thermal fusion image on the camera display. Advantage: Easier orientation, localisation and assessment during the measurement.

Key Features:

• High resolution 384 x 288 pixel fully radiometric detector (110,592 pixels)
• Low 0.05°C thermal sensitivity
• 1.1mRad geometric resolution for precise data results every time
• High-temperature measurement range of up to 600°C
• Adjustable 3.5" dual key touchscreen LCD
• Latest generation radiometric JPEG imaging
• 50Hz real-time measurement and real-time image display ensure clear thermal images of high quality
• 5mP Digital camera with flashlight function
• DuoVision Plus
• Fusion imaging and moveable PIP (picture in picture) for combined display of infrared and real image for contour detail-enhanced thermograms
• Integrated laser pointer
• Isotherm measurement and alarm

• Detector Size: 384 x 288 (110,592 pixels)
• Thermal Sensitivity (NETD): 0.05° C
• Temperature Measuring Range: -20 to +600° C
• Lens Size: 24x18°
• Screen Size: 3.5" tilt adjustable touchscreen LCD
• Geometric Resolution: 1.3 mrad
• Emissivity Adjustment: Yes, 0.01 to 1.0
• Digital Camera: Yes, 5mP
• Fusion Imaging: Yes, PIP (Picture in Picture)
• No. Of Measuring Points: 8
• Isotherm: Yes
• Automatic Max/Min Temp: Yes
• Laser Pointer: Yes
• Bluetooth: Optional voice recording headset
• Weight: 650 grams
• Battery Life: approx. 2.5 hours
• Warranty: 1 Year
